Lò nung chảy thủy tinh
Created with Pixso. Customized Glass Melting Furnace with PLC Control System for Clear Container Glass Production

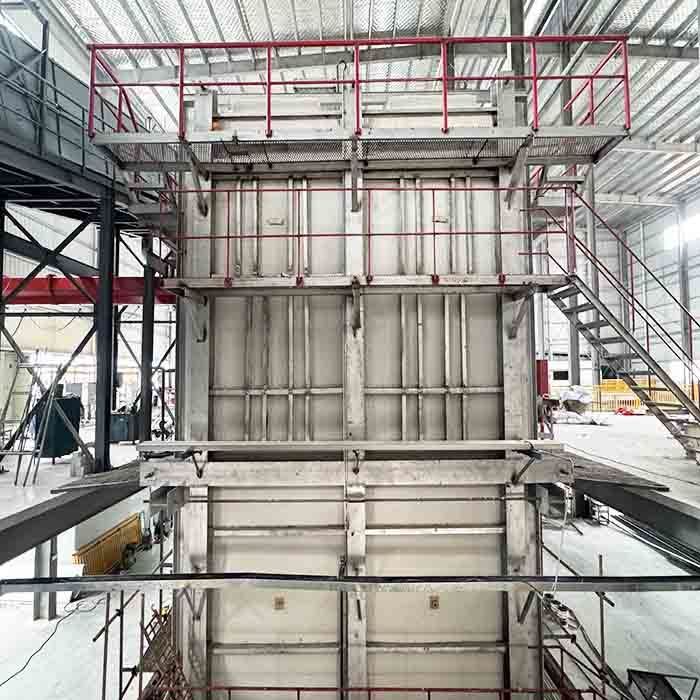

Customized Glass Melting Furnace with PLC Control System for Clear Container Glass Production

Tên thương hiệu: JEFFER
Số mô hình: tùy chỉnh
MOQ: 1 bộ
giá bán: có thể đàm phán
Thời gian giao hàng: 160 ngày sau khi nhận được khoản thanh toán xuống
Điều khoản thanh toán: T/T, L/C
Thông tin chi tiết
Nguồn gốc:
Trùng Khánh
Chứng nhận:
ISO9001, ISO14001, ISO45001
màu của kính:
Thông thoáng
Vật liệu:
Vật liệu chịu lửa, cấu trúc thép
Loại kính:
Soda chanh
Waranty:
một năm
Sản phẩm:
Kính thùng
Tình trạng:
MỚI
Sự tiêu thụ:
Tiết kiệm năng lượng
Dung tích:
tùy chỉnh
Hệ thống điều khiển:
PLC
Dịch vụ hậu mãi:
Dịch vụ kỹ thuật ở nước ngoài có sẵn
chi tiết đóng gói:
Vỏ gỗ, khay, khung thép, vv
Khả năng cung cấp:
1 bộ mỗi 4 tháng
Làm nổi bật:

One Year Warranty Glass Melting Furnace

,

Clear Container Glass Melting Furnace

,

PLC Control System Glass Tank Furnace

Mô tả sản phẩm
Customized Glass Melting Furnace with PLC Control System for Clear Container Glass Production
Brief Introduction
Glass melting furnace refers to the thermal equipment used in glass manufacturing to melt glass mixtures. Mix the powder prepared according to the glass composition and the added clinker (broken glass) at high temperature in the kiln to melt, clarify, and form a glass liquid that meets the forming requirements.
Glass manufacturing has a history of 5000 years, and the manufacturing method of using firewood as fuel and melting glass materials in clay jars has continued for a long time. In 1867, the Siemens brothers in Germany built a continuous coal-fired tank furnace. After 1945, glass melting furnaces developed rapidly.
Melting Process Stages
  • Silicate forming: The mixture is converted into a sintered material composed of silicates and silica.
  • Glass liquid forming: The sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles.
  • Clearing: The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.
  • Homogenization: The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole.
  • Cooling: Adjust the viscosity to be suitable for forming.
Furnace Melting Technology System
Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
Item Description
Temperature The temperature means the temperature of the melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Pressure Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.
Bubbing Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
Customized Glass Melting Furnace with PLC Control System for Clear Container Glass Production 0
FAQ
Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q: Can you offer design service?
A: Yes, we could design full solution drawings as per your requirements.
Q: Do you offer installation on site overseas?
A: Yes, we can provide our engineer to supervise the installation work on site or provide the whole installation team on site to finish the project.
